• Feature
      ◆ Plastic Material : High Temperature Plastic,UL94V-0
      ◆ Contact Material : Copper Alloy
      ◆ Contact Area Plated : Gold Plated Over Nickel
      ◆ Solder Area Plated : Tin Plated Over Nickel
      ◆ Current Rating : 0.5 Amp Max.
      ◆ Contact Resistance : 10 mohm Max.
      ◆ Insutation Resistance : 100 Mohm Min.
      ◆ Dielectric Withstanding Voltage : 300V AC/minute
      ◆ Operating Temperature : -55°C TO +85°C

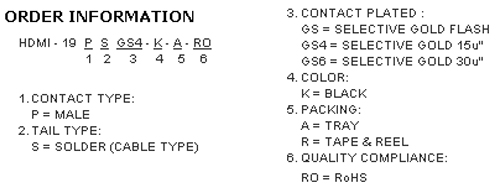

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Contact Type MALE
Tail Type SOLDER (CABLE TYPE)
Contact Plated
Color BLACK
Packing
Quality Compliance RoHS
