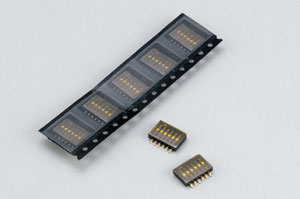

• HRM Series Half Pitch Type Dip Switch

    HRM Series Half Pitch Type Dip Switch

    ELECTRICAL
    Electrical life: 2000 operation cycles per switch 24VDC, 25mA.
    Non-Switching Rating: 100mA, 50 VDC
    Switching Rating: 25mA, 24VCD.
    Contact resistance:  (a) 50mΩ max. at initial
    (b) 100mΩ max. after life test.
    Insulation resistance: 100MΩ min. (at 100VDC)
    Dielectric Strength: 300VAC/1 minute.
    Capacitance: 5pF max.
    Circuit: Single pole single throw

    MECHANICAL
    Mechanical life: 2000 operations per cycle switch
    Operation Force: 500gf max.
    Stroke: 0.65mm
    Operation Temp: -25° C to +70° C
    Storage Temp: -40° C to +85° C
    Vibration Test:  MIL-STD-202F METHOD 201a
    Frequency: 10-55-10Hz/1 min
    Directions: X, Y, Z, three mutually
    perpendicular directions.
    Time: 2 hours each direction.
    High reliability.
    Shock Test:  MIL-STD-202F METHOD 213B.
    CONDITION A
    GRAVITY: 50G (peak value), 11 m/sec.
    Direction and times: 6 sides and three times in
    each direction. High reliability.
