• Specifications
      ˙Rating : 10A 125VAC/250VAC
                     16A 250VAC
      ˙Contact Resistance : 20mΩ(max.)
      ˙Insulation Resistance : DC 500V 100MΩ(min.)
      ˙Dielectric Strength : 1500VAC/1 Minute
    Materials
      ˙Housing : Nylon#66 UL 94V-2
      ˙Rocker : Nylon#66 UL 94V-2
      ˙Terminal : Copper Alloy Sn or Ag Plated
      ˙Contactor : Ag Alloy
      ˙Spring : Music Wire

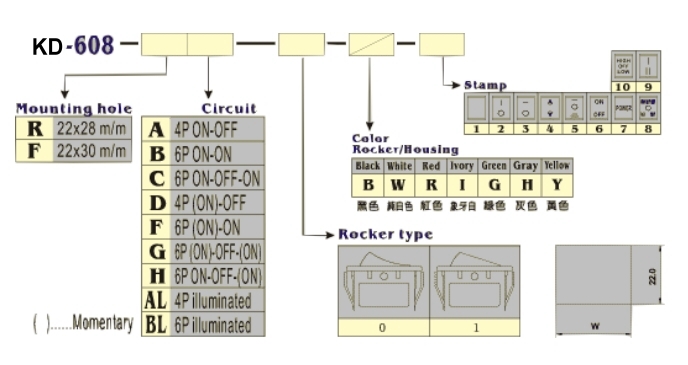

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series KD-608
Mounting hole
Circuit
Rocker type
Rocker Color
Housing Color
Stamp
