• Specifications
      ˙Rating : □ : 10A 125 VAC/6A 250VAC μT85
                          T : 16A 125VAC/10A 250VAC
                               1/3HP 125~250VAC T105

      ˙Contact Resistance : 20mΩ(max.)
      ˙Insulation Resistance : DC 500V 100MΩ(min.)
      ˙Dielectric Strength : 1500VAC/1 Minute
      ˙
    Safety Approval :

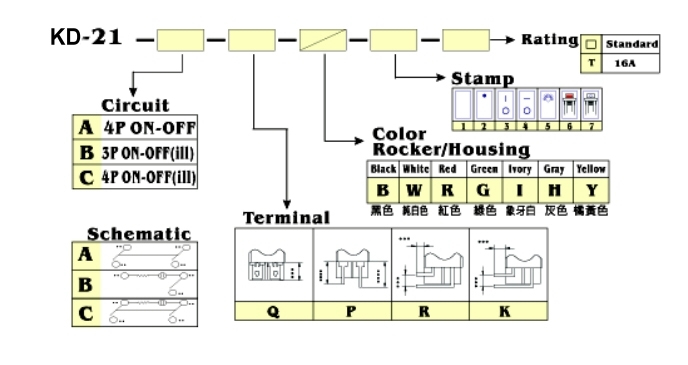

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series KD-21
Circuit
Terminal
Rocker Color
Housing Color
Stamp
Rating
See Catalog
