• Specifications
      ˙Rating: 10A 125VAC/8A 250VAC
      ˙Contact Resistance : 20mΩ(max.)
      ˙Insulation Resistance : DC 500V 100MΩ(min.)
      ˙Dielectric Strength : 1500VAC/1 Minute
      ˙Safety Approval :
    Materials
      ˙Housing : Nylon#66 UL94V-2
      ˙Rocker : Nylon#66 UL 94V-2
      ˙Terminal : Copper Alloy Sn or Ag Plated
      ˙Contactor : Ag Alloy
      ˙Spring : Music Wire

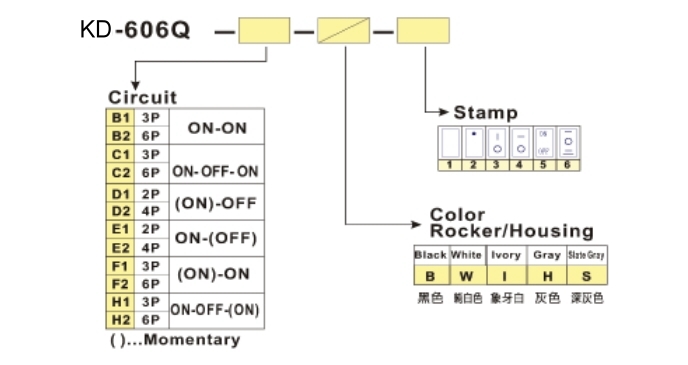

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series KD-606Q
Circuit
Rocker Color
Housing Color
Stamp
