Specifications
	˙	Rating	:	K : 10A 125VAC/6A 250 VAC
				6(2)A 250 VAC T125
				T : 16A 125 VAC/10A 250 VAC
				1 /3HP 125~250 VAC T105
	˙	Contact Resistance : 20mΩ (max.)
	˙	Insulation Resistance : DC 500V 100MΩ (max.)
	˙	Dielectric Strength : 1500VAC/1 Minute
	˙	Safety Approval : UR, CUR, VDE, Demko , Nemko, Semko, Femko

Please select Items below and click See Catelog for Inquiry.

See Catalog

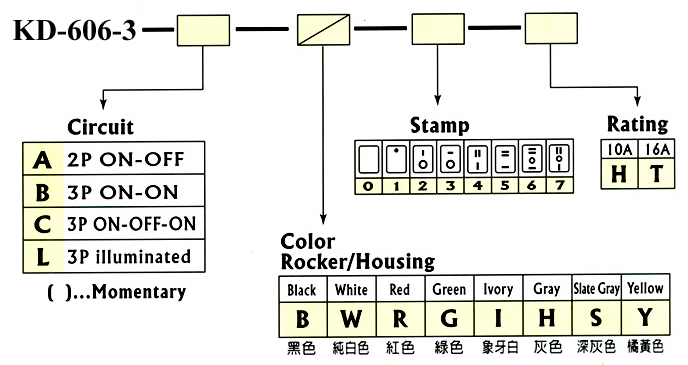

KD-606-3 Series Ellipse Shape Rocker Switch
