Specifications
	˙	Rating	:	K : 6A 125VAC/3A 250 VAC (UL CSA)
				H : 10A 125 VAC/6A 250 VAC (UL~SEA)
				L : 5A 125 L (Inrush Current 80A)
				T : 16A 125 VAC/10A 250 VAC T105
	˙	Contact Resistance : 20mΩ (max.)
	˙	Insulation Resistance : DC 500V 100MΩ (max.)
	˙	Dielectric Strength : 1500VAC/1 Minute
	˙	Safety Approval : UR, CSA, VDE, Demko , Nemko, Semko, Femko, SEV

Please select Items below and click See Catelog for Inquiry.

See Catalog

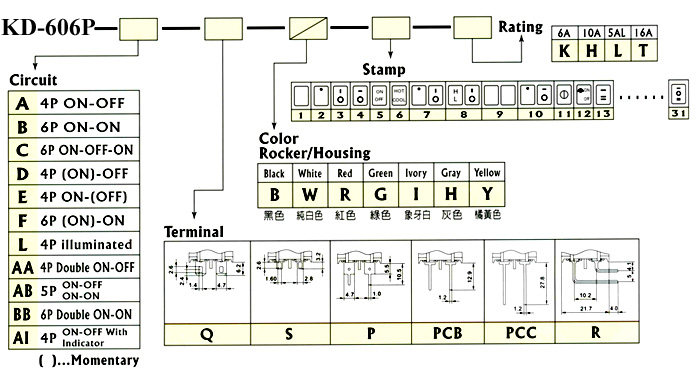

KD-606-P D.P. Rocker Switch
