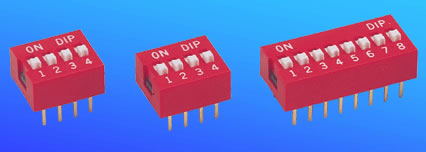

• DS(R) Series Dip Switch

    DS(R) Series Dip Switch

    Specifications:
    1.Non-Switching Rating 100mA 50VDC
    2.Switching Rating: 25mA 24VDC
    3.Contact Resistance: 50MΩ (max.)
    4.Insulation Resistance: 100Ω (min.)
    5.Dielectric Strength : 500VAC/1 Minute
    6.Electrical Life: 2000 Operations
    7.Operation Force: 400gf~1000gf
    8.Stroke: 2.0m/m
    9.Material: P.B.T UL 94V-0
    10.Contact: Copper Alloy With Gold Plated


DS(R) Series Dip Switch

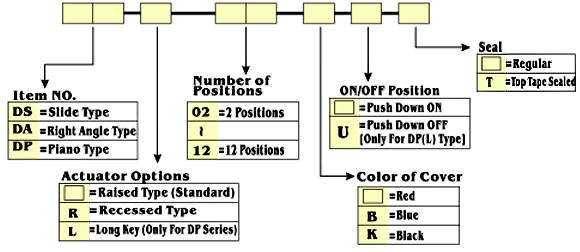

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Item NO. Silde Type
Actuator Options
Number of Positions
Color of Cover
ON/OFF Position
Seal
