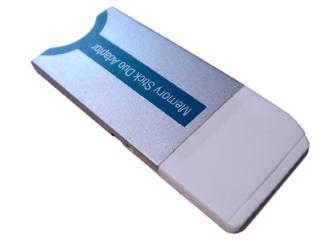

• K461S01 MS Duo Adapter
    K461S01 MS Duo Adapter

    K461S01 MS Duo Adapter

    SPECIFICATION MATERIAL
      ◆ Insulator: Thermal Plastic UL94V-V2
      ◆ Contacts: Copper Alloy
    CONTACT PLATING
      ◆ Underplate: 50m" Nickel
      ◆ Contact Area: 1m" ~ 30m" Selective Gold
      ◆ Solder Tails Area: 100m" Tin/Lead(Brighten Tin)or
           100m" Tin/Lead Free(Brighten Tin/Matte Tin)
    ELECTRICAL
      ◆ Operation Voltage: 3.3V
      ◆ Current Rating: 0.5 Amps Max.
      ◆ Contact Resistance: 80 mohms Max.
      ◆ Insulation Resistance: 1000 Mohms Min. @ 500 VDC
      ◆ Dielectric Withstanding Voltage: 250 VAC / Minute
      ◆ Operating Temperature: -20°C to +60°C
      ◆ Mating Cycles: 10,000 Insertions (In Office)
