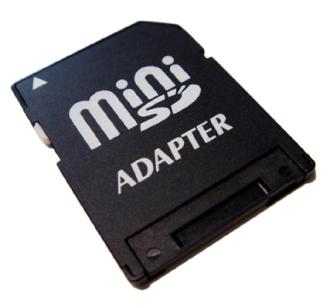

• K461SA3 Mini SD Adapter
    K461SA3 Mini SD Adapter

    K461SA3 Mini SD Adapter

    SPECIFICATION MATERIAL
       ◆ Insulator: Thermal Plastic UL94V-0
       ◆ Contacts: Copper Alloy
    CONTACT PLATING
       ◆ Underplate: 50μ" Nickel
       ◆ Contact Area: 1μ" ~ 30μ" Selective Gold
    ELECTRICAL
       ◆ Operation Voltage: 250 VAC Max.
       ◆ Current Rating: 1 Amps Max.
       ◆ Contact Resistance: 40 mohms Max.
       ◆ Insulation Resistance: 1000 Mohms Min. @ 500 VDC
       ◆ Dielectric Withstanding Voltage: 1000 VAC / minute
       ◆ Operating Temperature: -40°C to +85°C
