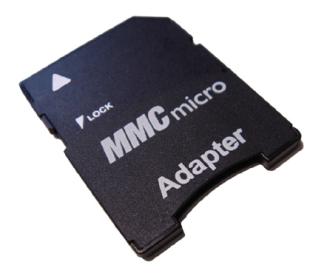

• KPN 461SA7 MMC micro Adapter
    KPN 461SA7 MMC micro Adapter

    KPN 461SA7 MMC micro Adapter

    SPECIFICATION MATERIAL
            ◆ Insulator: Thermal Plastic UL94V-0
       ◆ Contacts: Copper Alloy
       ◆ CONTACT PLATING Underplate: 50μ" Nickel
       ◆ Contact Area: 5μ" ~ 15μ" Gold Plating
    ELECTRICAL
       ◆ Operation Voltage: 5 VDC Max.
       ◆ Current Rating: 0.5 Amps Max.
       ◆ Contact Resistance: 100 mohms Max.
       ◆ Insulation Resistance: 1000 Mohms Min. @ 500 VDC
       ◆ Dielectric Withstanding voltage: 1000 VAC / minute
       ◆ Operating Temperature: -40 °C to + 85 °C
