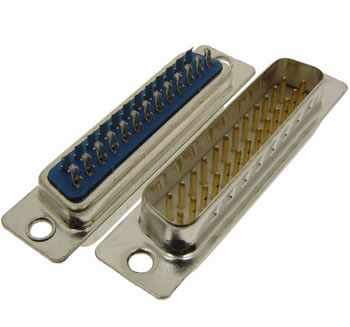

D-SUB Male Solder

Material :
   ◆ Insulator : P.B.T UL 94-V0 rated.
   ◆ Contact : Brass , t=0.20mm.
   ◆ Shell : Cold Rolled Steel ,t=0.40mm.

Specification :
   ◆ Current rating : 1 A Max.
   ◆  Dielectric withstanding voltage : 500 V(ac) for 1 minute.
   ◆  Contact resistance :30 mΩ Max.
   ◆  Insulation resistance : 1000 mΩ Min. at DC 500V.
   ◆  Total unmating force : 7.0 Kgf Max.
   ◆  Total unmating force : 3.0 Kgf Min.
   ◆  Temperature range : -55°C~+105 °C

Finishes :
   ◆ Contacts:Gold flashed 1u",3u",5u",10u",15u",30u".
   ◆ Shell : Nickel tin or gold plated.
